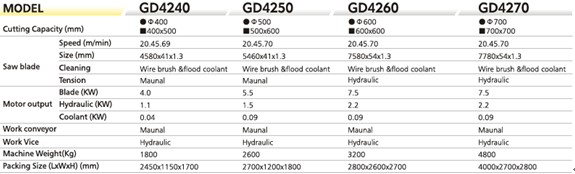

| Models |
Cutting range
(mm) |
Saw blade speed
(m/min) |
Saw band size
(mm) |
Main motor power
(kw) |
Dimensions
(mm) |
| GD4240 |
Φ400
□400x500 |
20/45/69 |
4580*41*1.3 |
4.0 |
2450*1150*1700 |
GD4240
Double- column
Horizontal
Metal Band
Sawing Machine
Main features of the machine
?Double- column structure.
?Clamped by hydraulic pressure vise.
The hydraulic pressure controls the saw in and out.
?Reasonable oriented head structure lengthen the saw
blade’s service life.
?Can make hydraulic tension saw blades as per request.
Product name:GD4240
Publish time:2010-12-8 0:00:00
|
